Contribution

To start using the documentation site and make your own contributions here is a short guide how to set up a local develepment environment.

Setup

Install Ruby

Install Ruby + DevKit from this link.

Ruby+Devkit 3.4.7-1 (x64) was used in this tutorial.

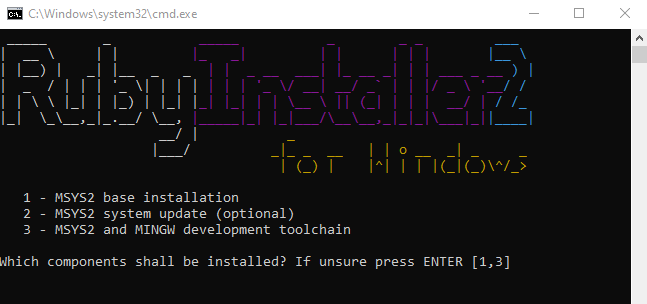

Run the downloaded installer. A cmd windows should appear.

Run all the options in order. After finishing all the installations hit ENTER with an empty argument to exit the installer.

Clone Repository

Open terminal, navigate to your desired folder. Clone the dokumentation repository and step into the folder.

git clone https://github.com/Fortuz/Fortuz.github.io.git
cd Fortuz.github.io/

Install Ruby gems

To install the requred gem dependencies based on the `Gemfile` located in the cloned repository run the following command:

bundle install

Run the site Locally

During the development phase it is easier to run the site locally, observ your changes faster and then just commit the final version.

To run the page locally during the development use the following command:

bundle exec jekyll serve

Useage

Using an IDE like Visual Studio Code is recommended, where the source code, git version control and terminal commands can be easily handled at once.

For more information about the webpage template and how to use it please see the guide.

MinimalMistake template useage guide

Folder structure

In general folders starting with a dash (like `_includes`, `_sass`) are containing the neccesary files for the webpage template itself. modifying them is rarely needed, only if the webpage functionality needs to be altered. Only exception maybe is the `_data` folder in which the `navigation.yml` file contains the main navigation items.

The assets folder contains additional materials for the documentations.

assets/images: all the images involved in the documentation should be stored here.

assets/src: contains the sorce files for some of the imeges if modofications are needed. Drawio files are a concreat example. Drawio was used to generate schematic files and block diagrams.

docs: this folder contains the documentation files.

Folder/File	Purpose	Modify?
_includes	Template files	Rarely
_sass	Stylesheet files	Rarely
_data/navigation.yml	Navigation menu	Yes
assets/images	Documentation images	Yes
assets/src	Source files (Drawio, etc.)	Yes
docs	Documentation content	Yes

Tip: If the Drawio files does not show after loading them in - sometimes the Dark/Light theme messes with the colors, try to change it.
